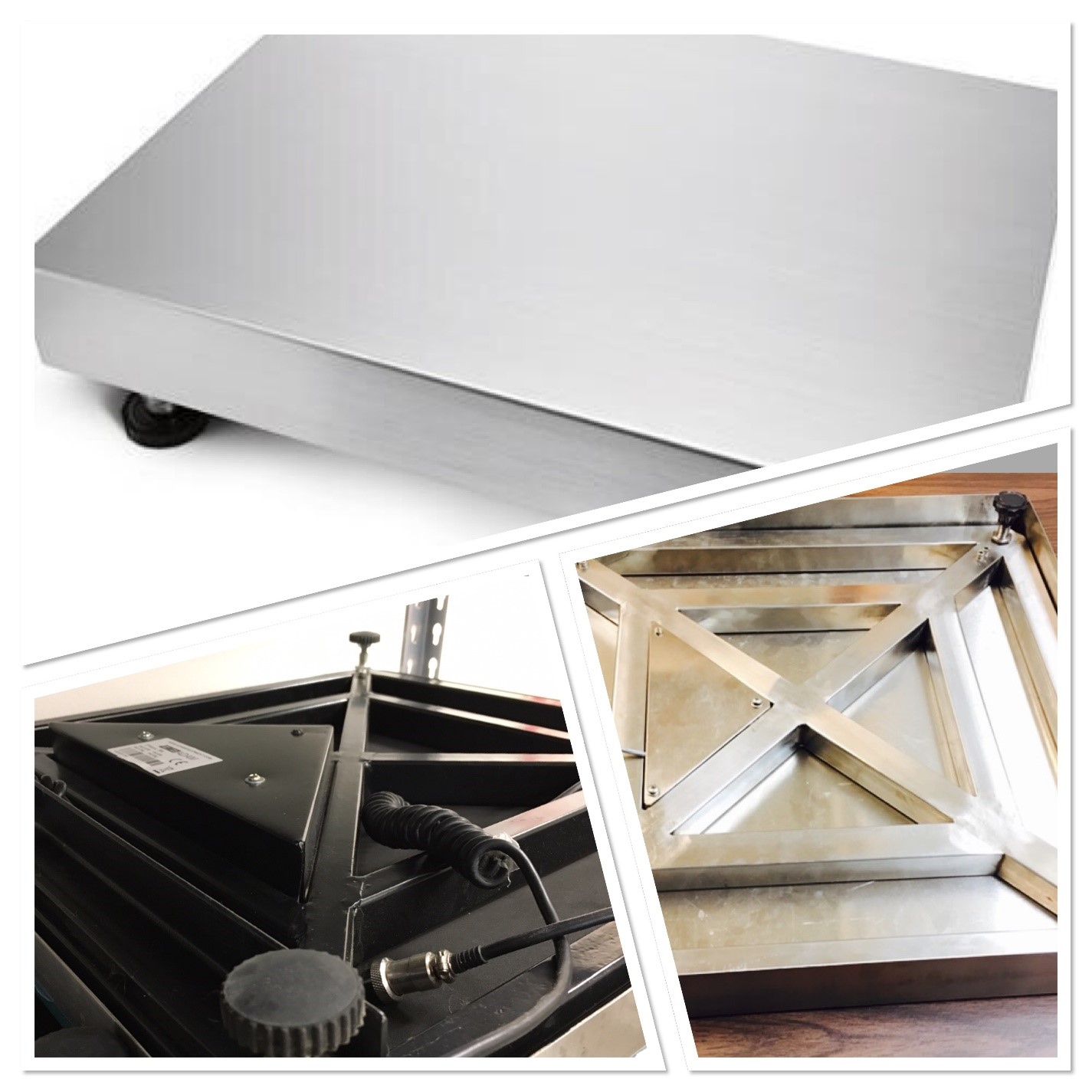

ABL BENCH SCALE(ABL 5101)

Capacity:

  6 to 350lb/ 3 to 150kg

Readability:

  0.01lb/ 0.005kg

Pan Size:

  12.5” x 12.5” (320 x 320mm)/ 19.7” x 19.7” (500 x 500mm)

Features:

  • Painted models are IP65 protected and thus suitable for industrial use.
  • Stainless steel models are IP67 protected and thus suitable for industrial use in damp environments (AISI type 304 stainless steel)
  • 4 Aluminum/Stainless Steel Single point load cell
  • Rugged construction with overload stop
  • Easy to clean thanks to innovative design, minimal horizontal surface
  • 4 adjustable leveling feet
Weighing Capacity lb (kg) Dimensions Inch (mm) Max. preload lb (kg)
6 (3) 12.5 x 12.5 (320 x 320) -
14 (6) 12.5 x 12.5 (320 x 320) 0-14 (0-6)
35 (15) 12.5 x 12.5 (320 x 320) 2-11 (1-5)
65 (30) 15.75 x 15.75 (400 x 400) 6 (3)
135 (60) 15.75 x 15.75 (400 x 400) 14 (6)
65 (30) 19.7 x 19.7 (500 x 500) 6 (3)
135 (60) 19.7 x 19.7 (500 x 500) 14 (6)
330 (150) 19.7 x 19.7 (500 x 500) 35 (15)
