L TYPE LOAD CELL (ABL 309)

Features:

• Alloy Steel Construction
• Glue sealing and welding to IP67 & IP68
• Easy to install and use for both tensile and compression application

Applications:

• Suitable for Hanging scale
• Vibratory feeding equipment
• Tension tension machine
• tank weighing, hopper weighing etc.

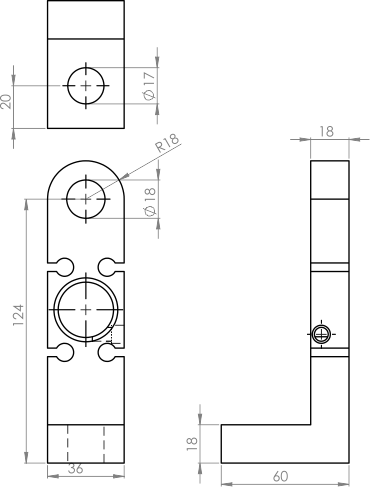

Dimensions:

Rated Load 1.5t	Insulation Resistance >20000 MΩ
Sensitivity 2± 0.005m V/V	Operating Temp Range -30 ~+70°C
Total error ±0.5% F.S	Safe load limit150% F.S
Creep (30 min)±0.05% F.S	Over Load Limit 200% F.S
Zero Balance ±1% F.S	Recommendexcitation 5-12V DC
TCO ±0.05% F.S./10°C	Maximum15V DC
TC SPAN±0.005% F.S./100C	Protection ClassIP67
Input Resistance 400 ± 10	ConstructionAlloy Steel
Output Resistance 352 ± 2	CableLength:3m D: 6mm
