Leading Manufacturer of Tension Link Load Cell

To measure rope tension by inserting as a link in to the line
To measure towing force of the vehicles and ships
Force Measurement Tension Dynamometer
Hanging & Crane Scale
Material handling equipments
Bollard Pull Test, Tug boats (Over Load detection weigh cable Force testing drag for measurement
Cargo handling in Ship Yards

2 Tf to 300 Tf capacities are available.
This load cell is compact and light weight for portability.
High alloy tool steel construction is for ruggedness and safety.
Perpendicular loading holes design helps in minimising external moment effects and improves safety and accuracy.
Optionally High temperature version for foundary applications can be offered upon request.

Reted Load 10,20,30,40,125,200,300
Excitation Voltage 10 VDC - Maximum 15VDC	Insulation Resistance (50 VDC) >20000 Mega Ohms
Nominal Output 1.0 m V/V	Cable Length (4 Core Screened) 5 Meters
Non - Linearity <±0.1% FSO	Nominal Output1.0 m V/V
Hysteresis <±0.5% FSO	Safe Overload of Rated Capacity 150%
Non-Repeatability <±0.1% FSO	Ultimate Overload of Rated Capacity 200%
Creep (30 Minutes) <±0.1% FSO	Allowable Side Load50%
Zero Balance<±0.1% FSO	Temp. Compensated Range0-60°C
Input Resistance 775± 15 ohms	Temperature Effect on Output<0.02 FSO/°C
Output Resistance 700± 3 ohms	Temperature Effect on Zero<0.02 FSO/°C
Finish & Construction Electroless Nickel Plated Tool Steel	Deflection<0.4 mm at FSO

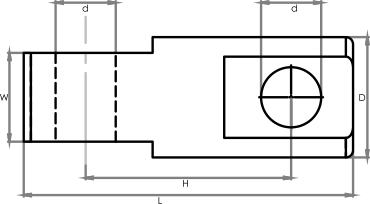

TENSION LINK LOAD CELL (ABL 306)
