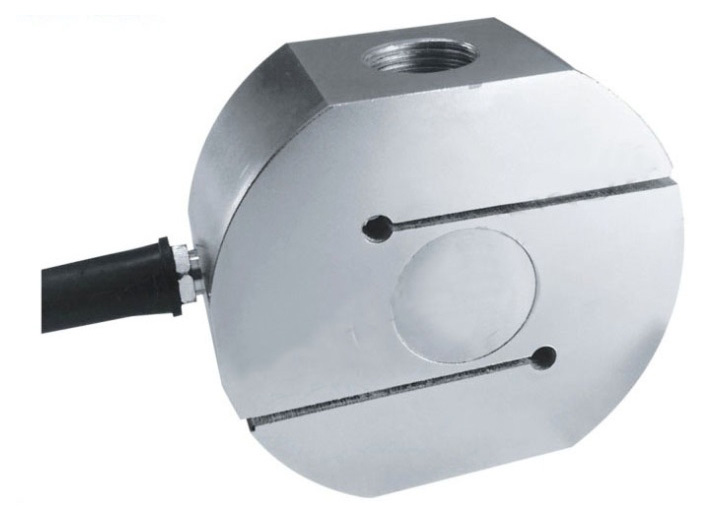

TENSION LOAD CELL (ABL 304)

CAPACITY	A	B	C	M
5t, 7.5t	90	102	45	M24*2mm
10t	135	147	60	M30*2mm
15t, 20t	182	198	75	M36*3mm

Features:

• Alloy steel construction
• Glue sealing and welding to IP67 & IP68
• Easy to install and use for both tensile and compression application, inbuilt overload safety ...

Applications:

• Suitable for Hanging scale
• Vibratory feeding equipement
• Tension testing machine
• Tank weighing, hopper weighing etc.

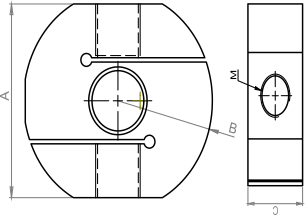

Dimensions:

Related Load (Ton) 1 / 1.5 / 2 / 5 / 7.5 / 10 / 20
Precision C2	Excitation Voltage (VDC)9~12
Composition Error ± 0.03	Compensated temp. Range (°C)-10~+40
Rated Output (mv/v) 3.0 ± 0.004	Use Temp. Range (°C)-10~+40
Creep (%FS/30min)± 0.03	Temp. Effect on Zero (%FS/10°C)± 0.023
Zero Balance (%FS)1.0	Temp. Effect on Span (%FS/10°C)± 0.017
Input Resistance (Ω)350 ± 5	Safe Overload (%FS)150
Output Resistance (Ω)350 ± 2	Ultimate Overload (%FS)200
Insulation Resistance (MΩ)5000	Defend GradeIP66
