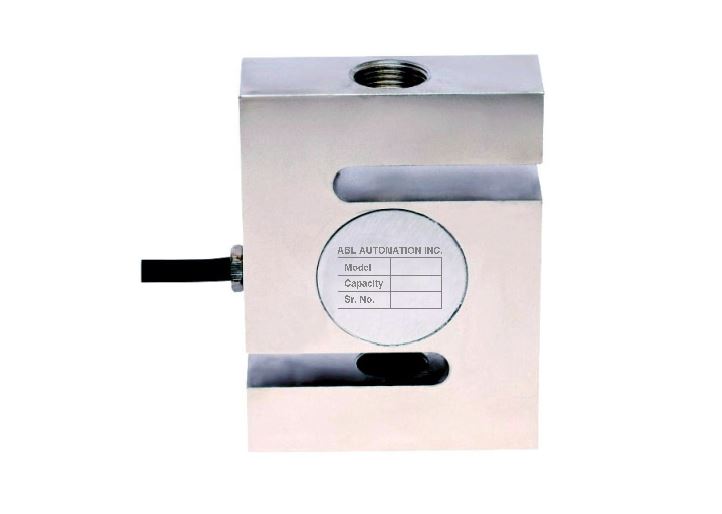

S BEAM LOAD CELL (ABL 301)

CAPACITY		A	B	C	M
301	10~50kg	51	12.7	64	M8
	100~500kg	51	19	76	M12 x 1.75
	1000kg	50.8	25.4	76	M12 x 1.75
301A	10~50kg	51	12.7	64	M6
	100~1000kg	51	19	76	M12 x 1.25
	2000~5000kg	76	28	100	M20 x 1.50

Features:

• Alloy steel construction
• Glue sealing and welding to IP67 & IP68
• Easy to install and use for both tensile and compression application

Applications:

• Suitable for Hanging scale
• Vibratory feeding equipement
• Tension testing machine
• Tank weighing, hopper weighing etc.

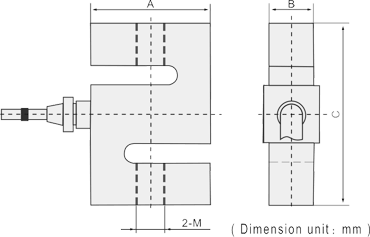

Dimensions:

Reted Load (kg.) 5, 10, 15, 20, 50, 100, 200, 300, 500, 1T, 2T, 3T, 5T
Precision C2	Excitation Voltage (VDC) 9~12
Composition Error ± 0.03	Compensated temp. Range (°C)-10~+40
Rated Output (mv/v) 2.0 ± 0.004 & 3.0 ± 0.004	Use Temp. Range (°C)-10~+55
Creep (%FS/30min)± 0.024	Temp. Effect on Zero (%FS/10°C) ± 0.023
Zero Balance (%FS)1.0	Temp. Effect on Span (%FS/10°C)± 0.017
Input Resistance (Ω)390 ± 10	Safe Overload (%FS)150
Output Resistance (Ω)350 ± 2	Ultimate Overload (%FS)200
Insulation Resistance (MΩ)5000	Defend GradeIP66
