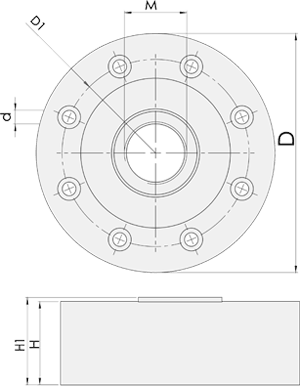

| CAP | D | D1 | d | M | H | H1 |
| 200kg to 5000kg | 105 | 90 | 6.2*8 | M16*1.5 | 32 | 36 |
| 10000kg&15000kg | 115 | 90 | 10.2*8 | M30*2 | 40 | 42 |
| 20T to 30T | 155 | 125 | 16.5*8 | M39*2 | 50 | 52 |
| 50T | 205 | 165 | 16.5*8 | M48*2 | 60 | 65 |
| 100T | 280 | 222 | 20.5*8 | M72*2 | 90 | 95 |
| Related Load (Ton) 0.2, 0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100 | |
| Precision C2 | Insulation Resistance(MΩ@VDC)≥5000(50) |
| Composition Error± 0.03 | Excitation Voltage (VDC)9~12 |
| Rated Output (mv/v)2 ± 0.008 | Compensated temp. Range (°C)-10~+40 |
| Non-Linearity (%FS)0.017 | Use Temp. Range (°C)-20~+55 |
| Hysteresis (%FS)0.02 | Temp. Effect on Zero (%FS/10°C)0.05 |
| Repeatability (%FS)0.01 | Temp. Effect on Span (%FS/10°C)0.03 |
| Creep (%FS/30min)0.03 | Safe Overload (%FS)150 |
| Zero Balance (%FS)± 1 | Ultimate Overload (%FS)200 |
| Input Resistance (Ω)750 ± 10 | Defend GradeIP66 |
| Output Resistance (Ω)700 ± 5 | Cable6mm, 10mtr |
